300--400w ufo houisng
Product features

high quality ad12 diecasting aluminum rounnd UFO bay housing parts ..

using tempered glass   and silicon rubber for strong waterproof Ip67  outdoor usage .

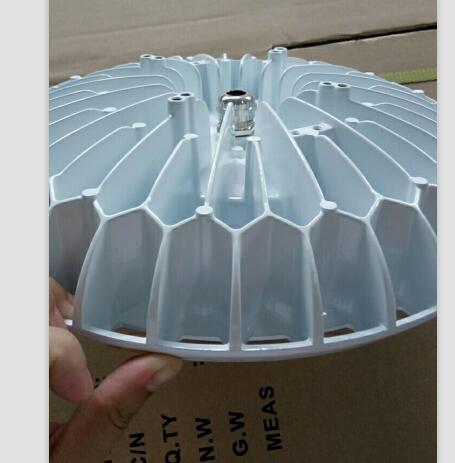

more cooling fins in the back and heat pipe conduction  for fast heat dissipation.

suitable for COB leds or smd 3030 pcb  power  300w--450w .
suitable for hbg driver or square driver inside  .
black or siliver or white color for heat sink body  .

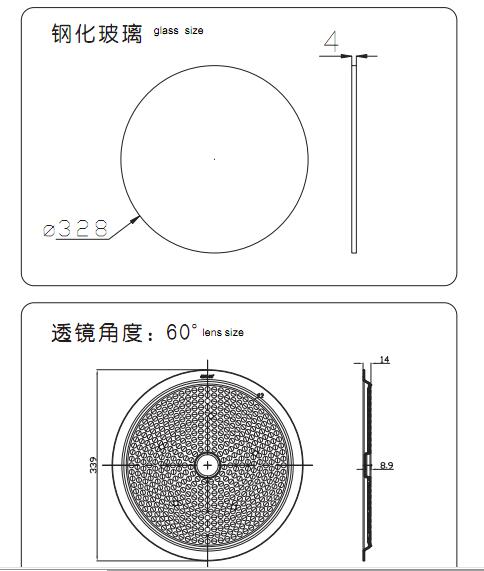

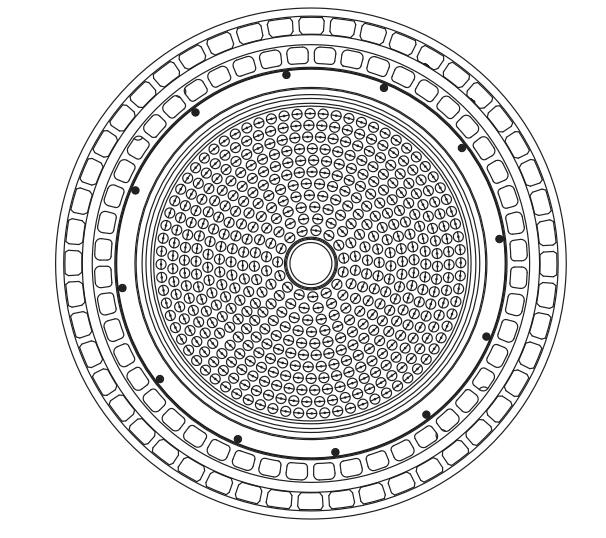

the diamond reflector cover degree is 60/90 /120 degree for your option .
using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast .

Specifications
nput Voltage:100-240VAC 50/60Hz)
Rated Power: 300--440W
Power efficiency:≥0.9
IP Grade:IP67
Material: Aluminium cooling fins +heat pipe heatsink
Ream Angle reflector : 60 degree or 90 degree or 120 degree .
CCT :WW(3000K)/NW(4000K)/PW(6000K)
CRI:WW:Ra80/NW:Ra80/PW:Ra75
leds : bridgelluxe or 3030  smd leds c
cob size :34x34mm  or bridgelux  cob.

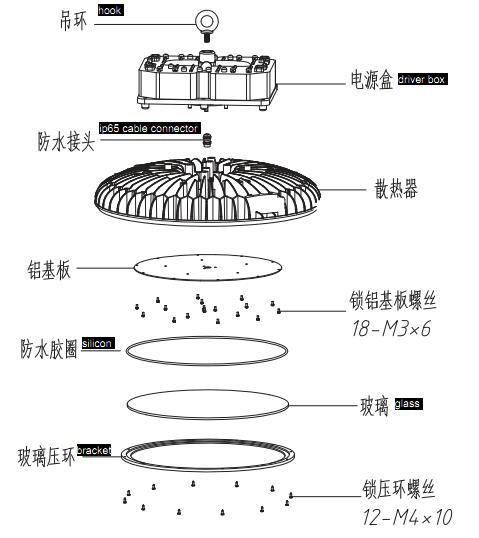

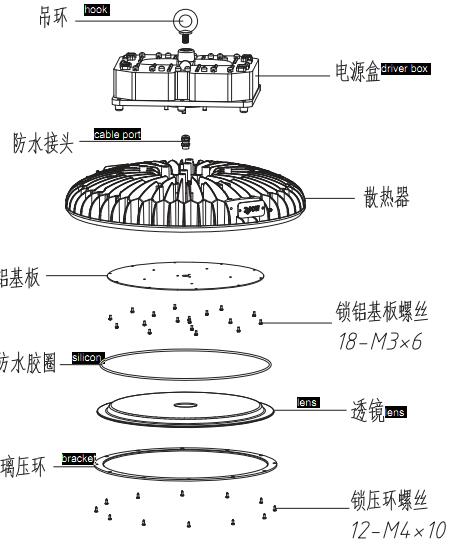

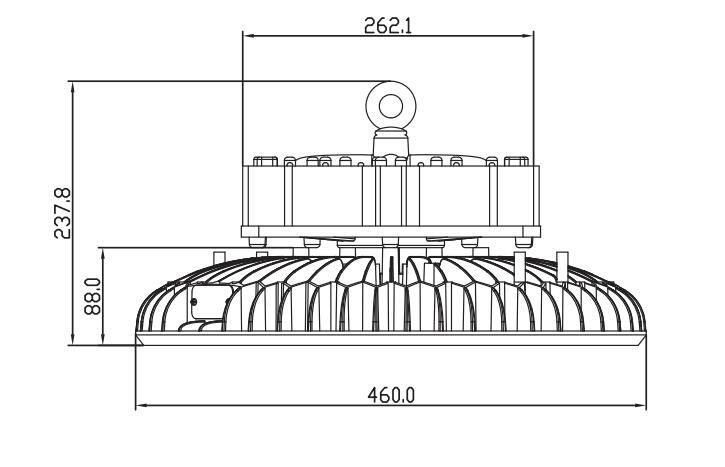

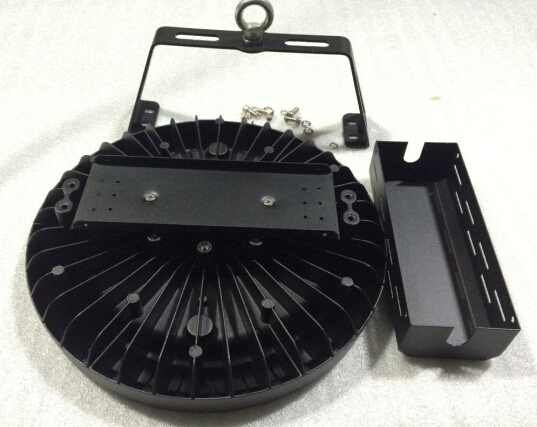

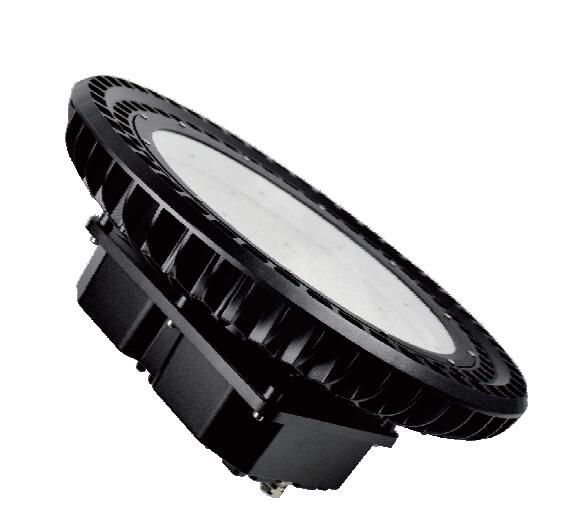

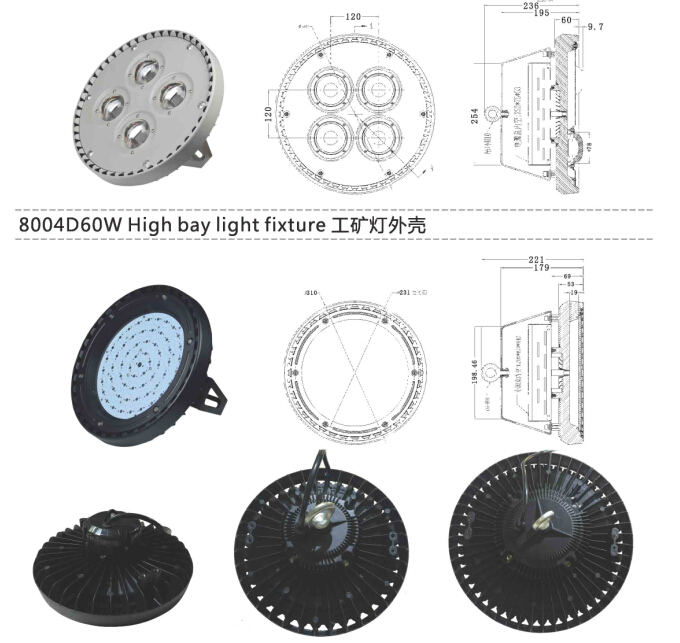

Product pictures
